What hexa-laminate actually is

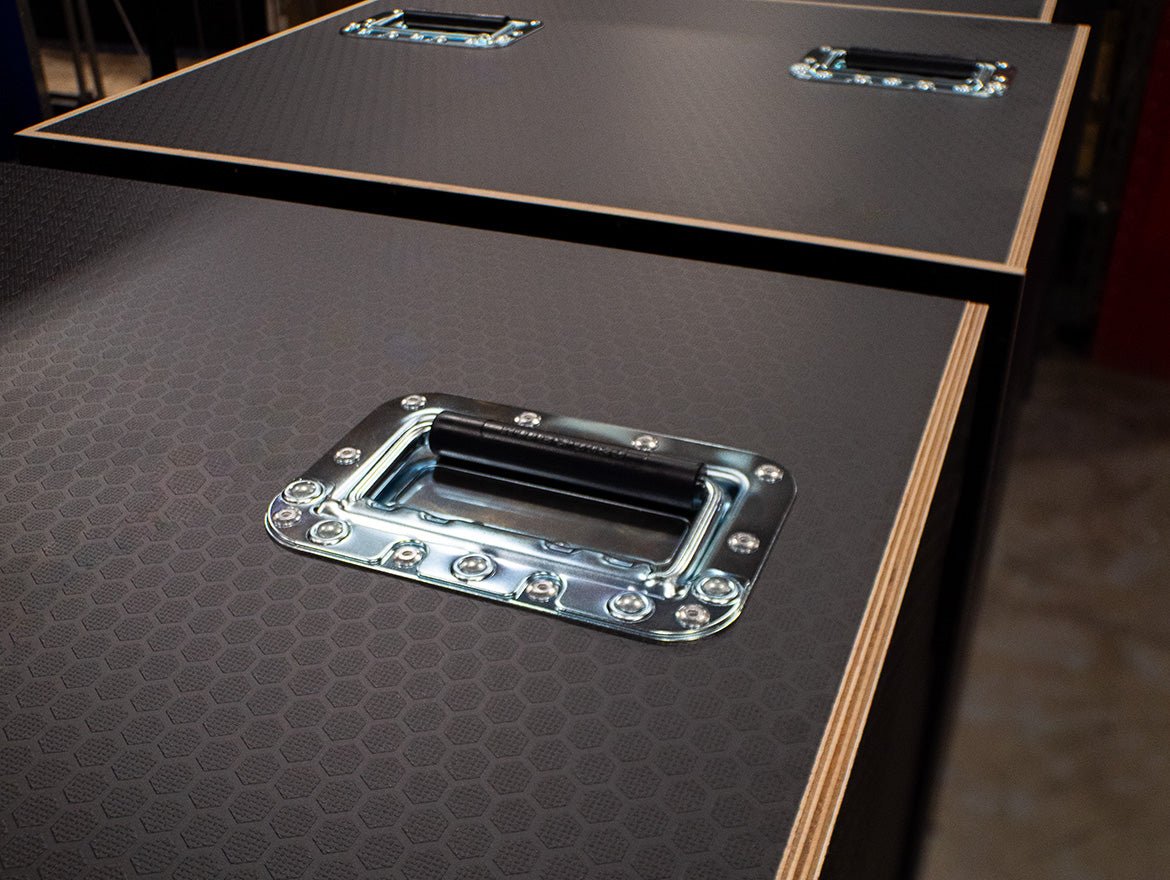

Hexa-laminate is birch plywood faced with a phenolic resin film embossed with a hexagonal anti-slip pattern. The construction matters in that order: a strong core, sealed with a hard wearing surface, finished in a texture that resists wear and adds grip.
Birch ply is the structural element. It's chosen over softer plywoods because the wood fibres are dense, the layers are bonded with waterproof adhesive, and it accepts mechanical fasteners without splitting. The phenolic resin is the sealing layer — it makes the panel moisture-resistant, easy to clean, and resistant to surface abrasion. The hexagonal embossing isn't decoration. It increases the friction coefficient of the surface, so cases stack securely without sliding.
Why 9mm became the standard
Panel thickness is always a compromise between strength and weight. Too thin and the panel flexes under load, allowing the internal foam to compress and the protection to fail. Too thick and the case becomes unmanageable for two-up handling, especially when full of equipment.
9mm hits the sweet spot for tour-grade cases handling equipment in the 20–80kg range — the bracket that covers most professional audio, video and broadcast kit. At this thickness, the panel resists impact without crushing, holds its shape under stacking loads, and accepts the mechanical loading from extrusions and corner blocks without deforming.
Heavier-duty applications — engine cases, gearbox cases, large broadcast equipment — often step up to 12mm. Lightweight applications use 6.5mm or 7mm with structural reinforcement. But for the touring sector that defines the industry, 9mm has been the consensus standard for decades.
How the panel performs under stress
Impact
When a case is dropped onto a hard surface, the impact energy has to go somewhere. In a hexa-laminate panel, that energy is absorbed across the full surface area of the panel, deformed slightly, and distributed into the surrounding extrusions and corner blocks. The phenolic surface flexes momentarily and returns to shape; the birch core compresses microscopically and recovers.
Compare that to a thin MDF panel, which doesn't flex — it cracks. Or a low-grade plywood without phenolic facing, which absorbs moisture from the impact-induced flex and weakens with each subsequent hit. Hexa-laminate is engineered to take repeated impact and recover.
Compression and stacking
Cases live their lives stacked on top of each other in trucks, warehouses and production loading bays. A 9mm panel resists the compressive load of three or four cases stacked above it without losing its geometry. The panel stays flat; the case stays square; the lid keeps closing properly. This is why panel thickness matters even though the static loading isn't dramatic — it's the cumulative effect over years of touring.
Moisture
Touring is a wet business. Outdoor festivals, rain-soaked load-ins, condensation in trucks crossing temperature gradients across European borders. The phenolic facing of hexa-laminate is the first defence — water beads on the surface and runs off rather than soaking into the panel. The waterproof adhesive bonding the birch layers underneath is the second defence. Together they keep the panel structurally sound through environments that would destroy a non-faced plywood within months.
How to spot a real hexa-laminate panel
Cheaper cases sometimes use thinner ply with a printed honeycomb pattern, or an MDF core with a phenolic skin only on the outer face. From a distance these can look indistinguishable from properly laminated panels. Up close, three things give them away:
— The hex pattern is embossed, not printed. Run a fingernail across it — it should have texture, not be smooth.
— The edge of the panel reveals the construction. Real birch ply shows distinct, even layers; MDF is uniform brown; cheap ply has irregular voids.
— The phenolic surface is on both faces. A real hexa-laminate panel has the textured black coating top and bottom. A skin-only panel only has it on one side.
On a properly built flight case, you can usually see at least one panel edge — under a lid, at a hinge, at a corner inside. That edge tells you everything about the build quality.
Why the panel is only part of the equation
Even the best panel material fails if it's poorly bonded into the case. The connection between hexa-laminate and aluminium extrusion is where premium and budget cases differ most. A premium build uses through-fastened rivets at regular intervals, with the panel correctly seated into the extrusion channel before riveting. A budget build relies on adhesive alone, or uses fewer rivets at wider spacing — both of which fail under repeated impact and vibration.
The same logic applies to internal furniture: shelves, dividers and foam carriers all need to be securely bonded to the panel. A panel that holds up under impact but releases its internal structure on the first heavy drop hasn't done its job.
The wider engineering picture
Hexa-laminate is the foundation, but it works as part of a system. Aircraft-grade aluminium extrusions wrap every edge. Reinforced steel corner blocks distribute the impact at every junction. Recessed butterfly latches apply even closing pressure across the gasket. Fully foamed interiors absorb the residual shock that the panel passes through. Each element is engineered around the others.
This is why a tour-grade case is more than the sum of its specifications. The 9mm hexa-laminate is doing 60% of the work — but the other 40% only happens if everything around it is built to the same standard. A premium panel in a poorly assembled case is just an expensive panel.
At Nomad Casing, we hand-build every case in our Market Harborough workshop. The panels we use, the extrusions we wrap them in, the corners we reinforce, and the latches we fit are all chosen to work together — and the result is a case that lasts decades, not seasons. It's why production companies trust us with kit they can't afford to lose.
