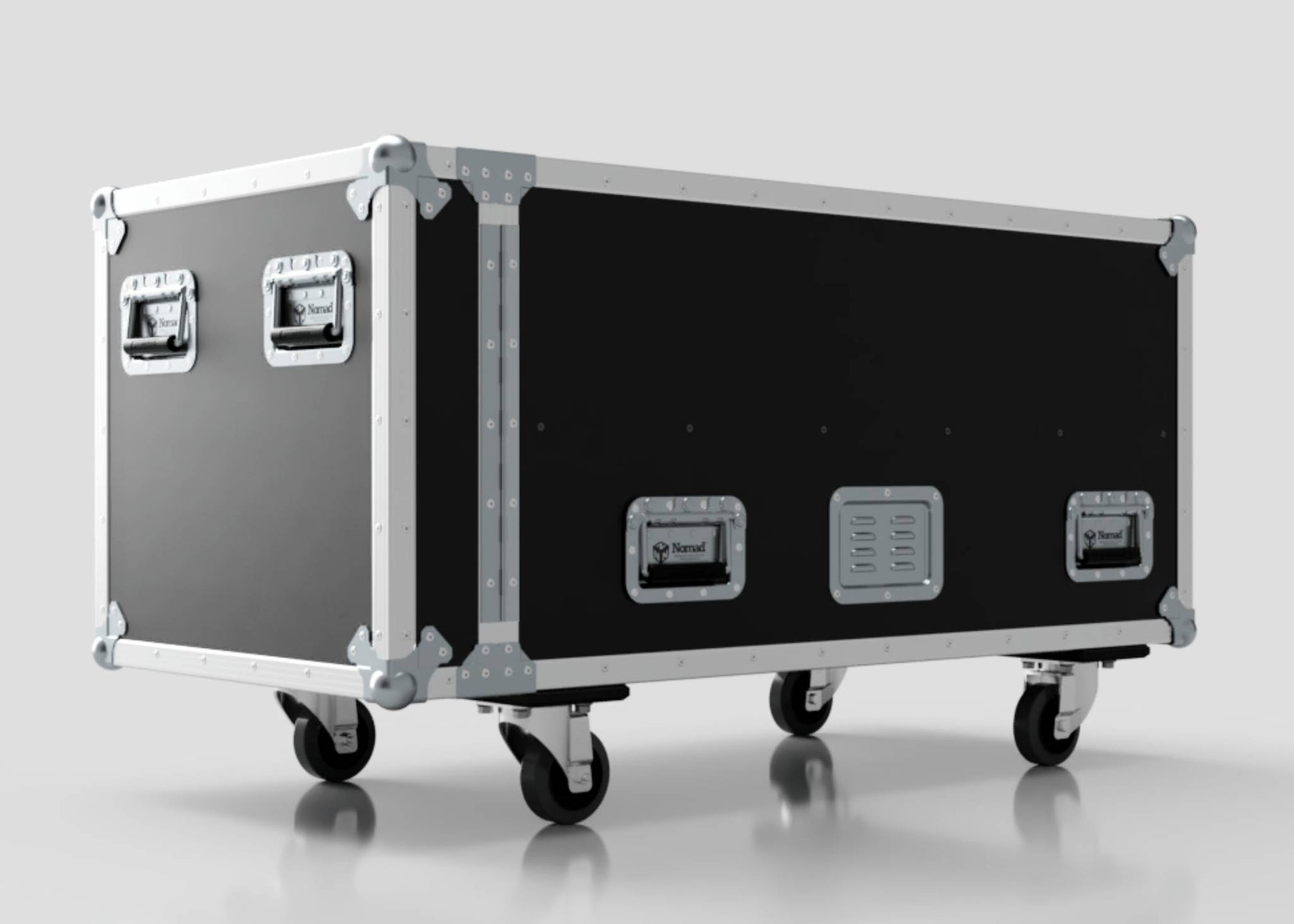

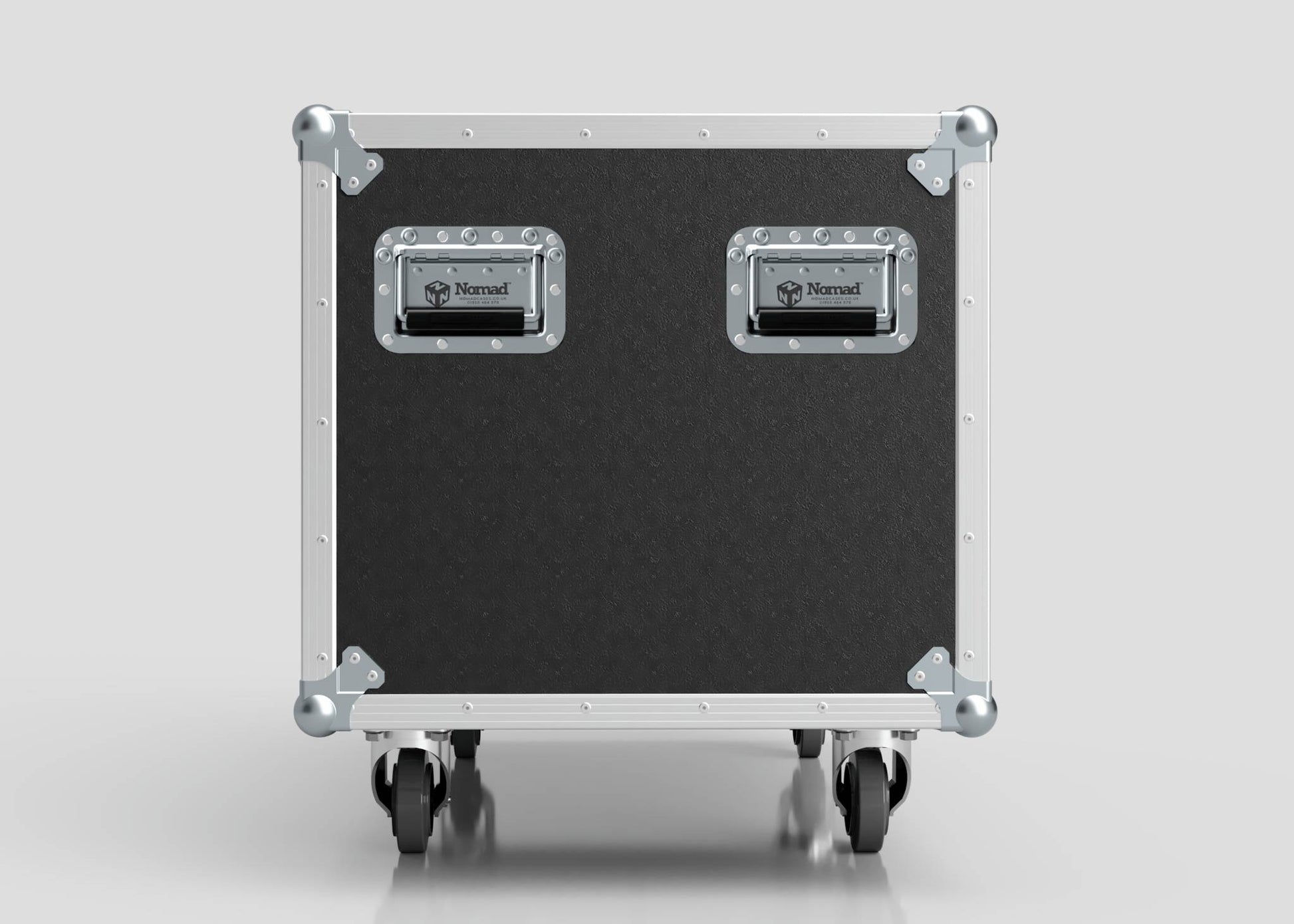

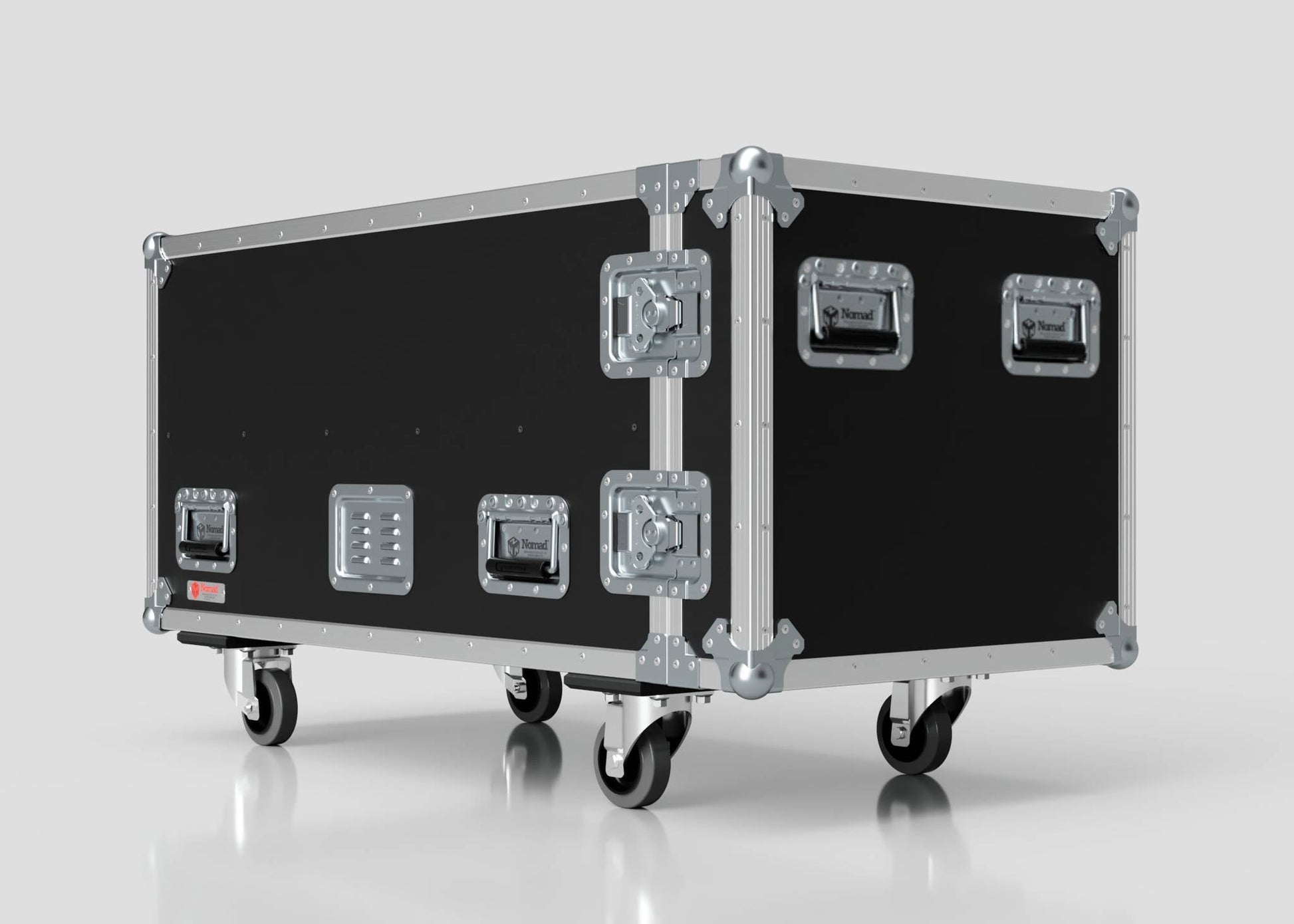

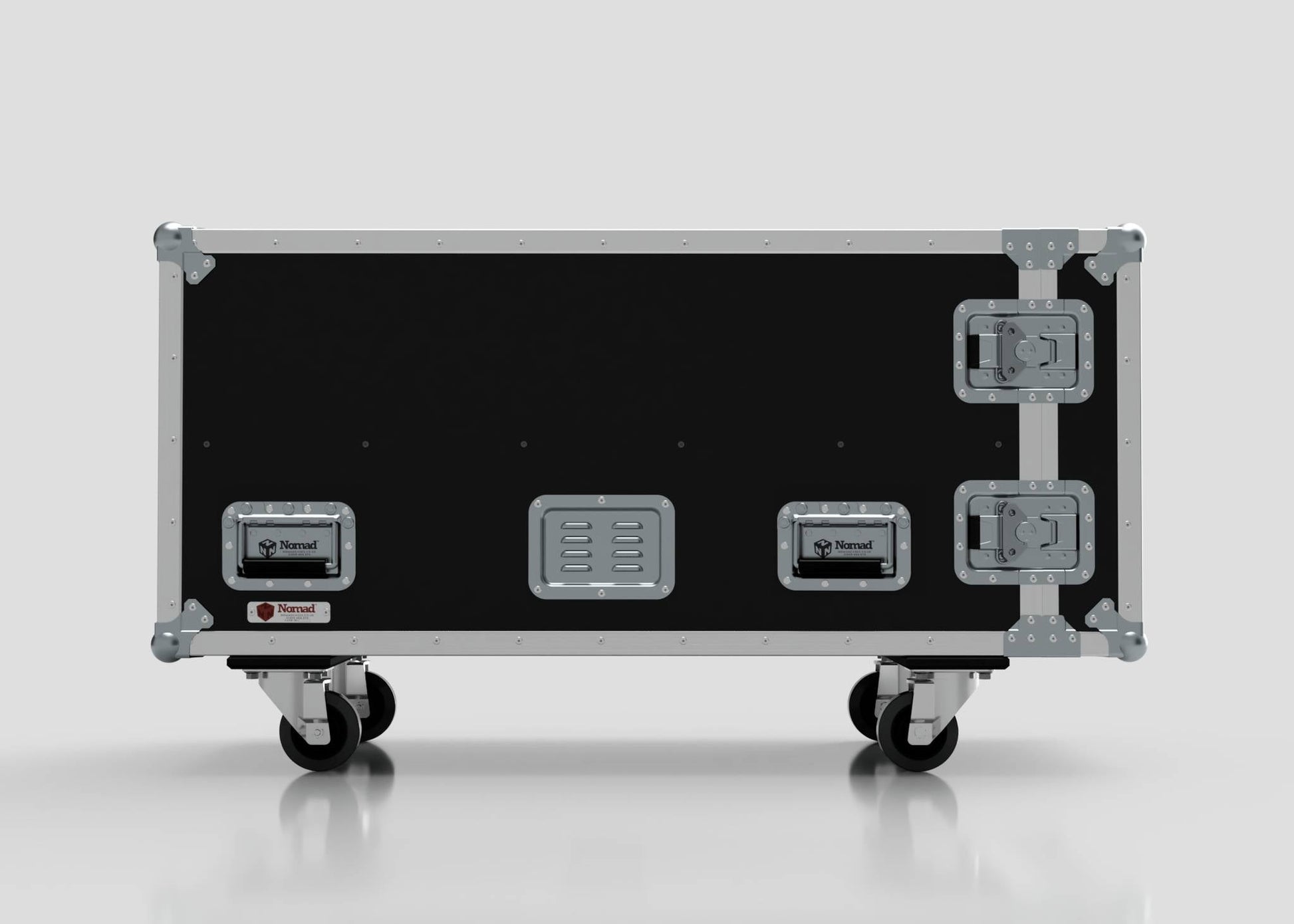

3-Way COLORado PXL Curve 12 Flight Case

Ultimate protection for three pixel-mapped fixtures. Motor-safe transit. Secure storage for the rigging that comes with them.

The Nomad 3-Way COLORado PXL Curve 12 Case is built for the touring lighting crews, festival production teams, and rental houses moving three of Chauvet Professional's pixel-mappable LED battens between venues in a single, efficient unit — where the fixture's motorised tilt mechanism and individually-addressable LED pixels need protection that generic flight cases simply don't provide.

Hand-built in our Market Harborough workshop, every case combines a three-fixture CNC foam tooled interior with a dedicated secure storage compartment for the clamps, safety cables, and rigging hardware that accompanies each PXL Curve 12 to site. Three fixtures, all the kit, one case.

Why generic cases fail this fixture

The COLORado PXL Curve 12 isn't a static LED bar. It's a precision instrument — individually-controllable pixels driven through pixel-mapping software, paired with a motorised tilt mechanism that responds in real time to cue commands. Both systems are sensitive to vibration, impact, and the chain handling rigging crews work through during 200+ shows a year.

A generic foam-fitted flight case protects the outer body of the fixture. It doesn't isolate the motor from sustained low-frequency vibration during freight handling. It doesn't account for the LED panel's resin coating and the small impacts that cause hairline damage over time. It doesn't keep the accessory hardware sorted from the fixtures themselves, so clamps and safety cables get loose in transit and impact the panels.

This case is engineered around exactly those failure modes — and built to carry three fixtures together with the same protection standards as a single-fixture custom case.

Ultimate protection, engineered around the fixture

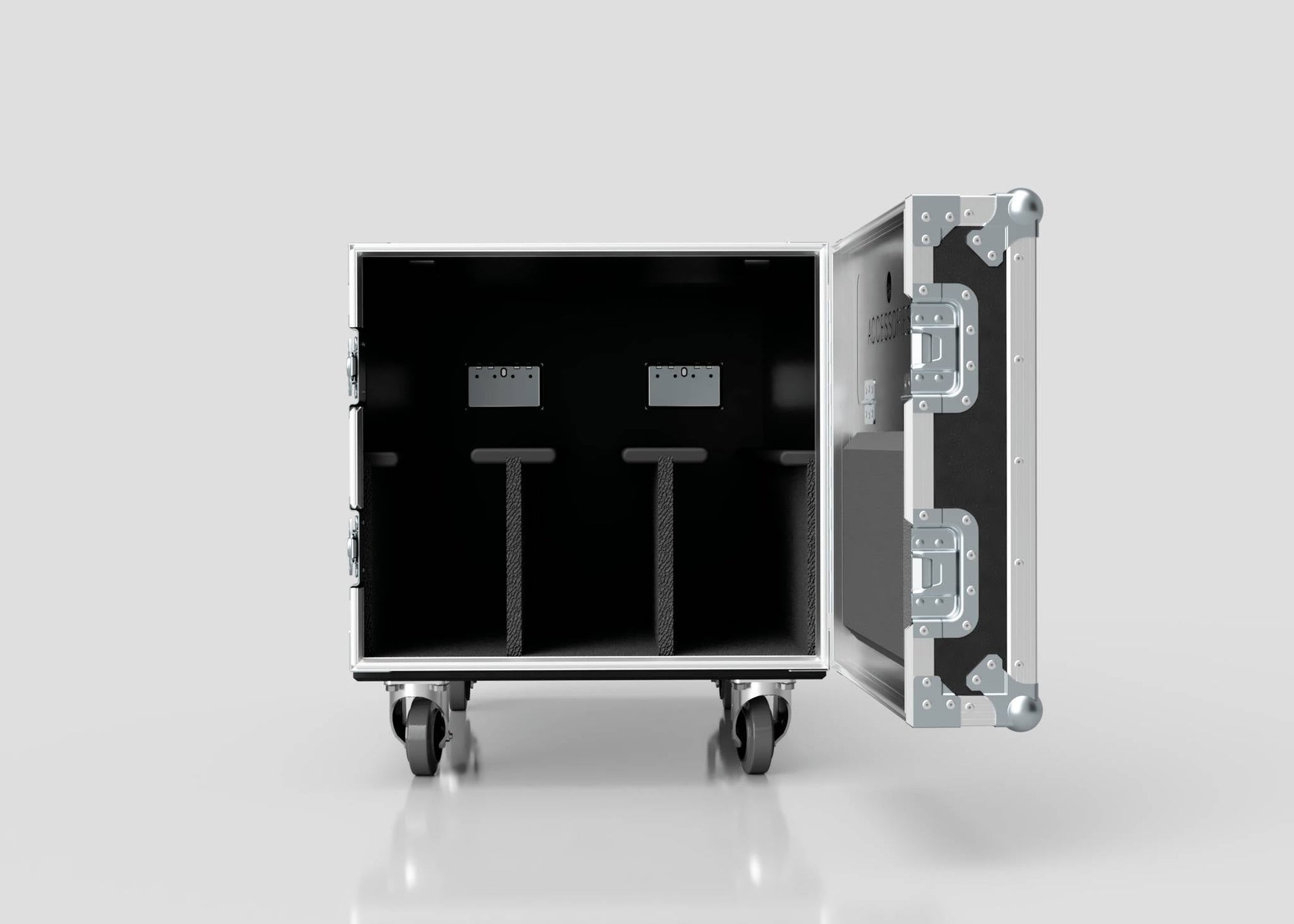

Every Nomad 3-Way Curve 12 case is CNC-profiled to the exact dimensions of the fixture — including the motorised tilt yoke, the LED panel face, and the connection panel at the rear. Dual-density Plastazote foam tooling cradles all three fixtures from below and above, isolating each motor assembly from high-frequency vibration during freight transit and absorbing the impact loads that come with festival load-ins.

The fixtures sit face-up in the foam tray, allowing crews to visually inspect each unit before pulling it for the show. Each motorised yoke is supported separately from the panel body, ensuring the motor doesn't carry the fixture's weight during transit — a small detail that meaningfully extends motor service life across an entire rental fleet over multiple touring seasons.

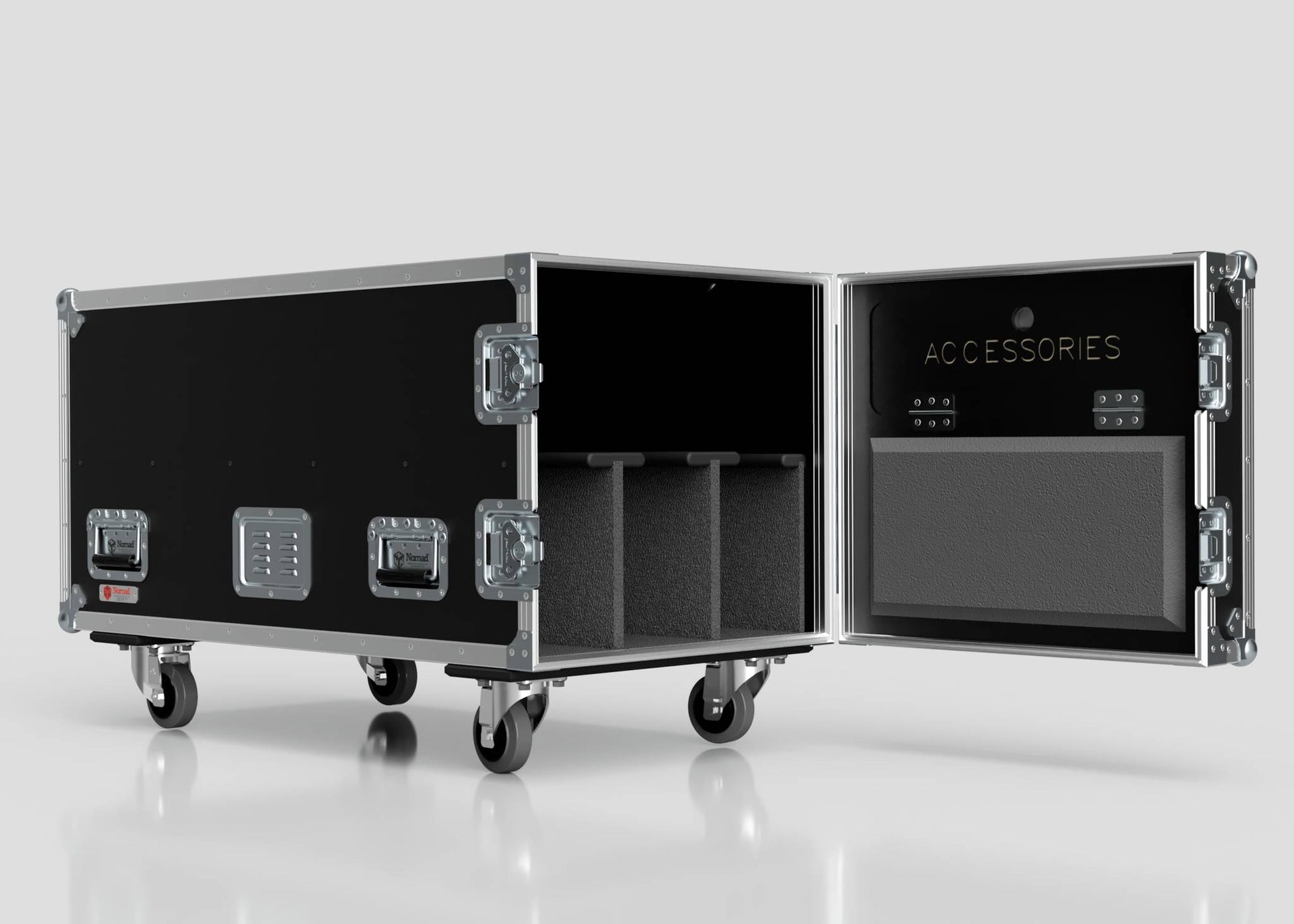

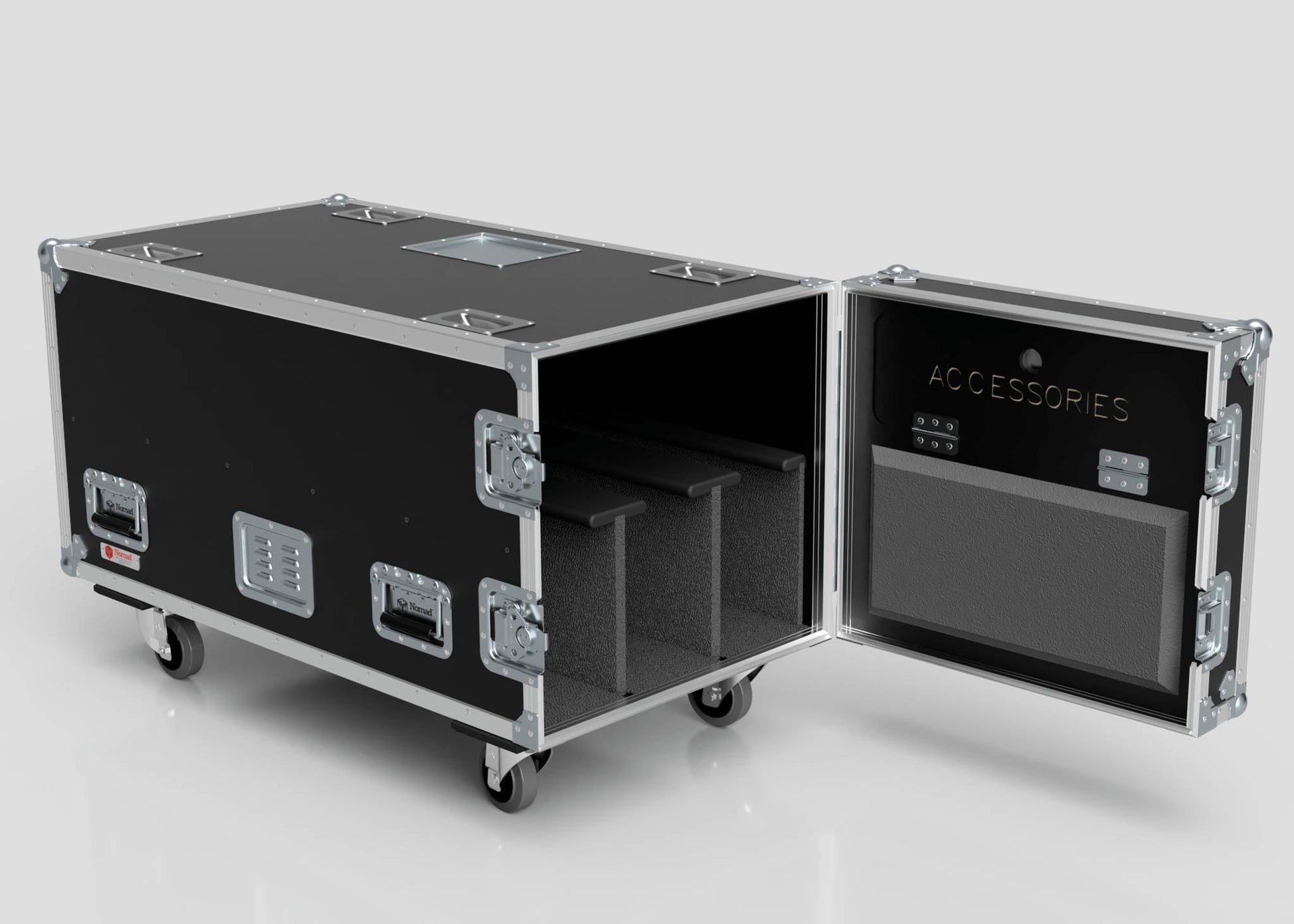

Secure accessory storage

The Curve 12 doesn't travel alone. Each fixture ships with safety cables, hook clamps, power and DMX/CAT5 cables, and rigging hardware that has to make it to site as reliably as the fixture itself. Three fixtures means three sets of accessories — and the operational risk of mismatched, missing, or tangled hardware multiplies fast on a festival load-in.

A dedicated secure storage compartment keeps all of this hardware sorted, protected, and immediately accessible. No more digging through trunks for misplaced clamps or chasing down cables across the rigging bay. The case arrives with everything three fixtures need — properly stored, properly protected, properly together.

Engineered around how rigging crews actually work

The case is built on a reinforced 18mm wheelboard with heavy-duty 100mm braked castors, recessed butterfly latches on every closure, and 9mm hexa-laminate panel construction throughout. Aircraft-grade aluminium extrusions protect every edge. Reinforced steel corner blocks at every junction.

It stacks cleanly with other Nomad cases for truck-pack efficiency. It rolls smoothly across festival mud, stadium concrete, and venue ramps alike. It survives the brutal physical reality of touring without protruding hardware to catch, snag, or damage adjacent equipment in the truck.

The right configuration for rental fleet logistics

Three-fixture cases sit in the sweet spot of touring logistics — large enough to make freight pack efficient, small enough to remain single-person manageable during load-in and load-out. For rental houses building out fleets of 30, 60, or 100+ PXL Curve 12 fixtures, the 3-way case format scales cleanly: ten cases carries thirty fixtures, twenty cases carries sixty, every truck-pack stays predictable.

Specified properly across a rental fleet, this case format reduces handling time per fixture, simplifies inventory tracking, and standardises the way crews work with the kit. Small operational efficiencies multiplied across hundreds of fixtures and hundreds of shows.

Specified by the production professionals who depend on this fixture

Our 3-Way COLORado PXL Curve 12 Cases are trusted by touring lighting crews running European festival circuits, broadcast lighting teams kitting out studio installations, rental houses maintaining LED fleet inventories, and production companies specifying premium flight case standards for high-value fixture roll-outs.

The brief is always the same: protect the motor, protect the LED panel, keep the rigging organised, and survive the road.

If you're maintaining a fleet of PXL Curve 12 fixtures and need cases specified properly across the inventory, talk to our team about volume builds. Most of what leaves our workshop is built to specification, and most of our rental house customers reorder year after year.

Engineered, hand-built and tested in Britain since 1961.

External Dimensions:

(L) 1220 x (W) 600 x (H) 661 mm
